The Up for Grabs Mystery Motor

Well, this turned out to be an interesting motor, at least, if you are a nerd like me :slight_smile:

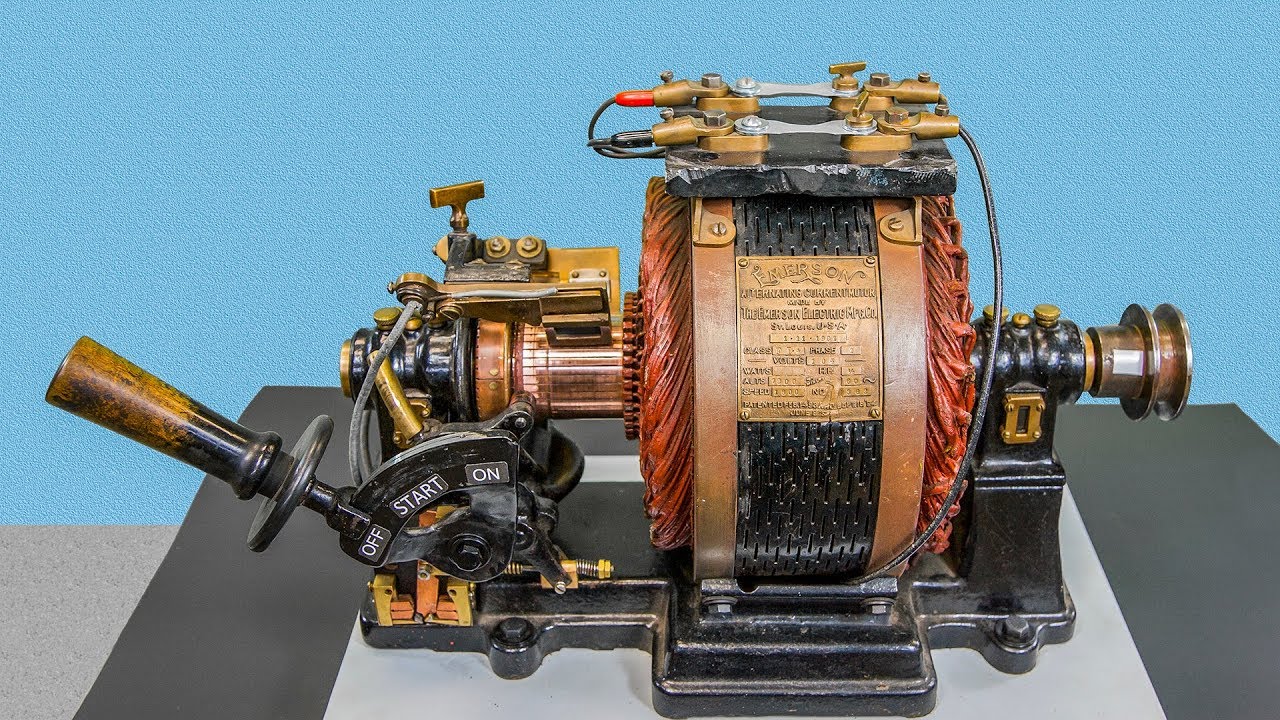

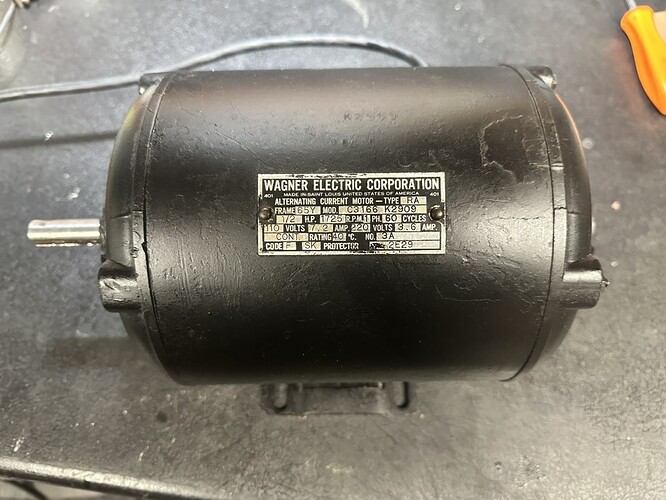

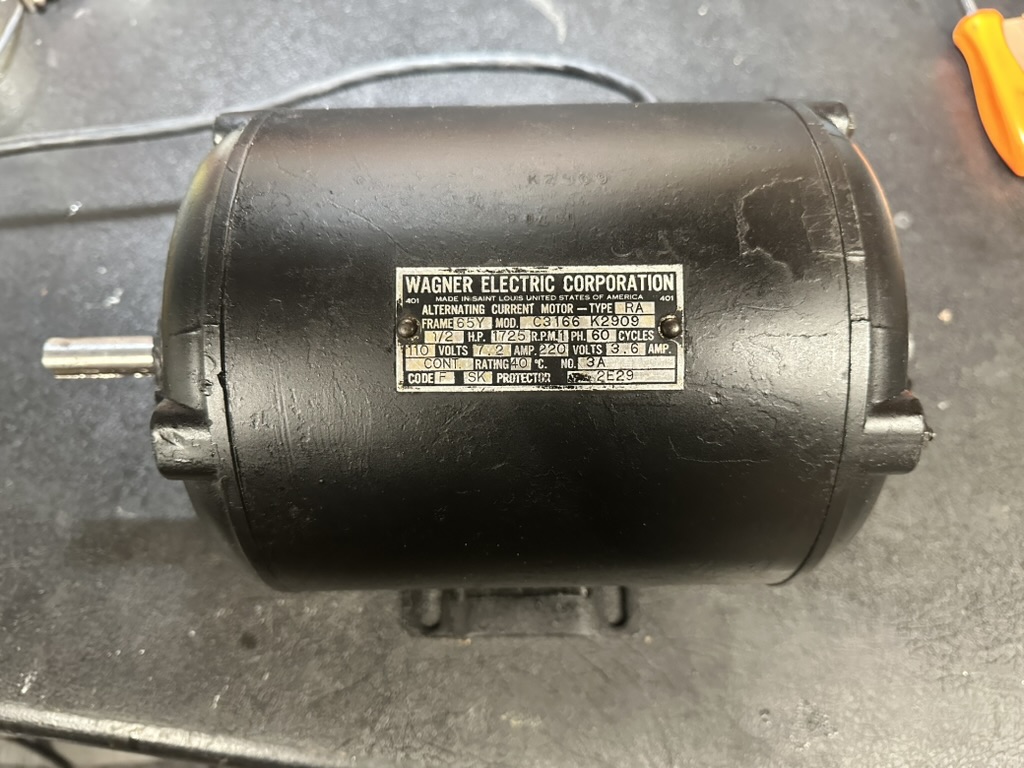

Best as I can tell, it is likely 50 to 80 years old. After a little cleaning and wiring though, it still runs perfectly.

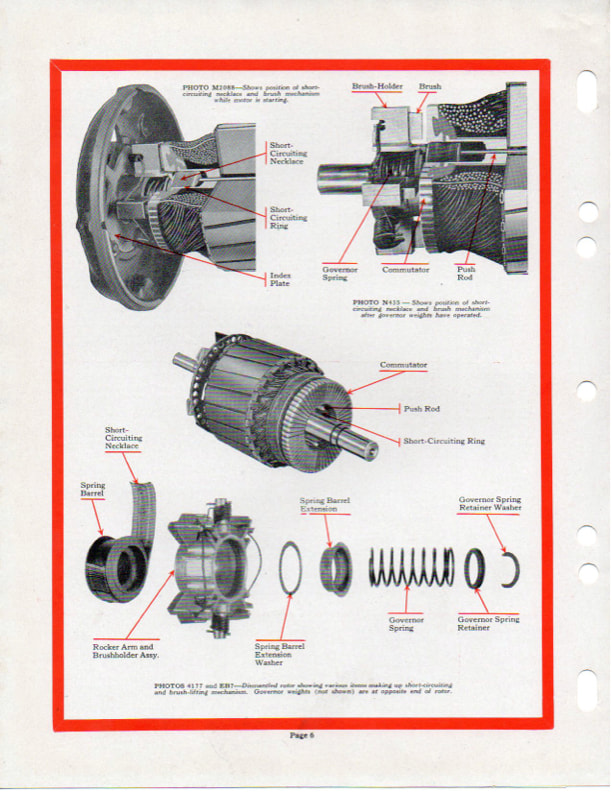

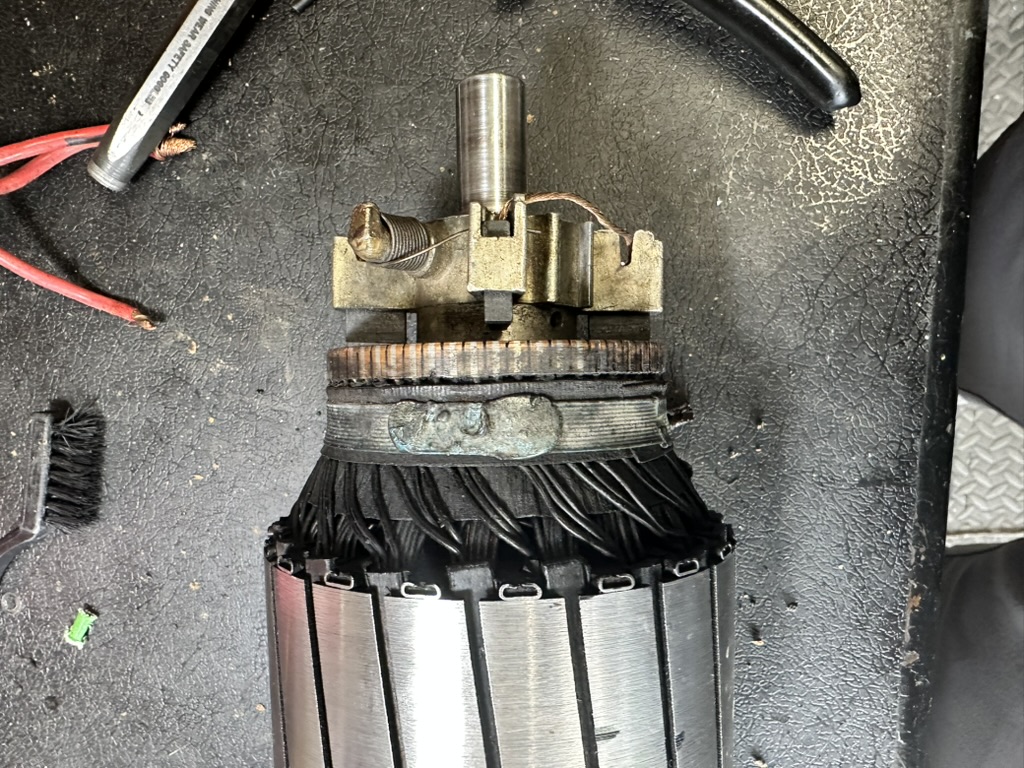

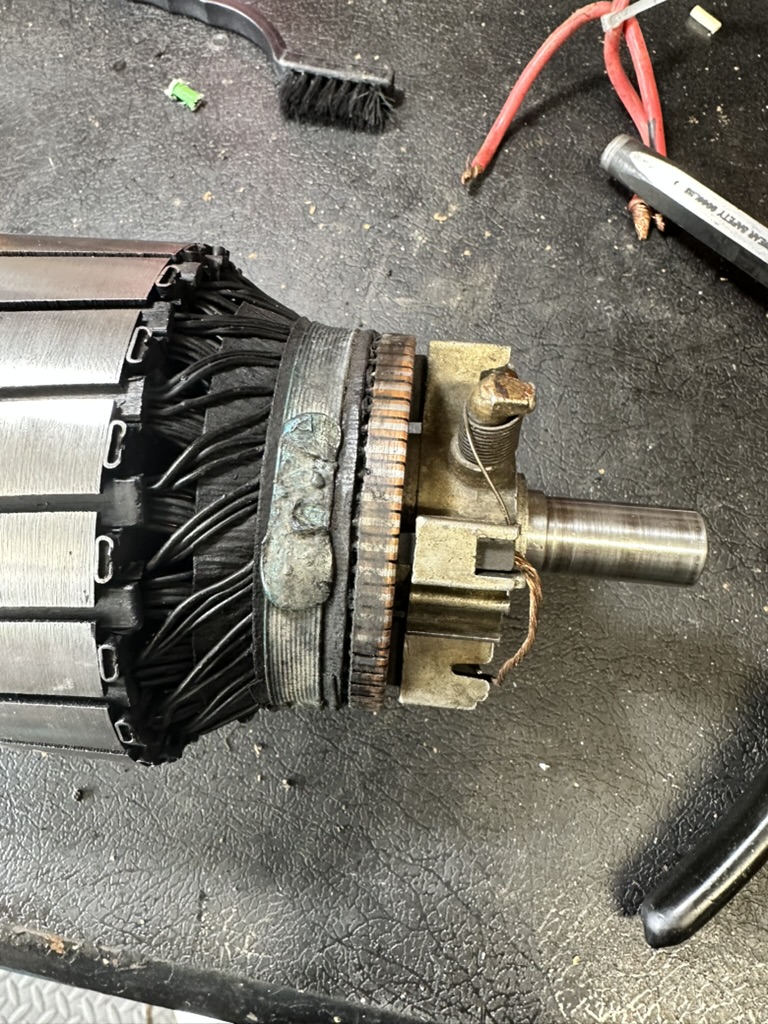

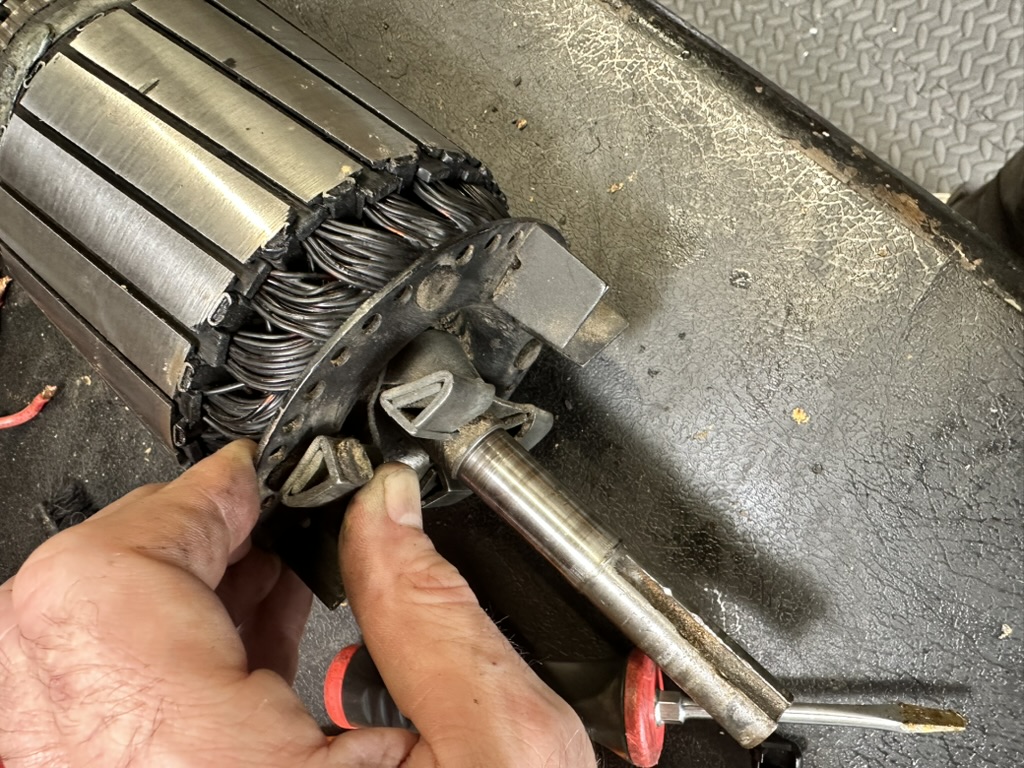

This is what is known as a replusion start motor. It has a wound rotor with the rotor windings terminating at a commutator. The brush sets are connected to each other and cause the rotor to develop magnetic poles which push against the magnetic field from the stator, and deliver a high starting torque on very little starting current. At about 3/4 of operating speed, a centrifugal mechanism at the front pushes the brushes away from the commentator and at the same time pushes a copper ring into contact with the inside of the commutator, shorting all the bars together. After that, the motor runs like normal squirrel cage induction motor. The brushes are no longer needed once the motor is running.

3 Likes

Wow, it’s like a airplane taking off - once the wheels leave the ground they are tucked away.

3 Likes

Wow. I never realized repulsion start motors were a thing. It’s interesting how engineers created fixes before more advanced technology was available.

3 Likes

That’s really neat, I never knew about repulsion motors. The centrifugal mechanism reminds me of the centrifugal speed governors that elevators use(d?). Pure mechanisms like that are so great.

1 Like
