05/18/25 10:56PM 3D Printing - Prusa XL

FacilitiesBot · May 19, 2025, 3:56am

Issue type: Equipment Problem
Area: 3D Printing
Equipment: Prusa XL
Summary: TH #5’s ‘Dwarf Cover Base’ print broke
Additional Info: Dwarf Cover Base needs to be reprinted+replaced (.stl provided by Prusa)

Please see Links + Photos in next comment

Report generated from a filing. This report has also been sent to Asmbly staff, leadership, and space leads with any contact info that was provided. Provide additional photos or resources here to help. When the problem is resolved, ensure it is marked.

blakeko · May 19, 2025, 4:27am

Hi All

After adjusting the Prusa XL’s idler tension/dwarf-cover-door for TPU dozens of times without issue, I accidentally mishandled the dwarf-cover-door today. I accidentally snapped a bit plastic on the dwarf-cover-base that allows the dwarf-cover-door to hinge open and closed.

I’ve ordered Black PETG and can print replacement part by Tuesday evening.

Prusa Docs on Dwarf Board Housing disassembly (contains dwarf-cover-base replacement steps)

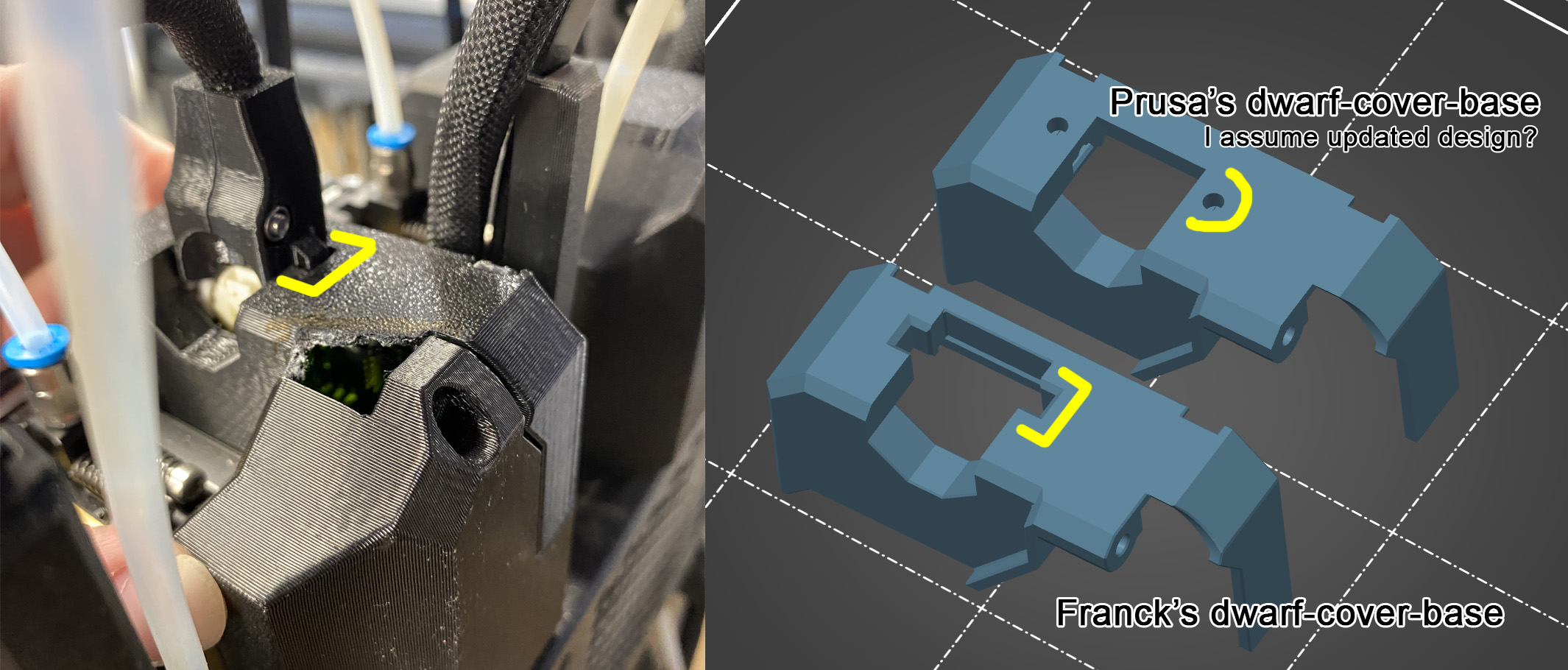

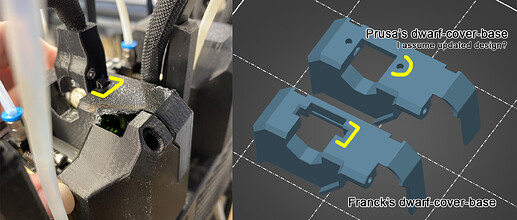

Prusa’s XL Print Files (I did notice their dwarf-cover-base stl differs from Asmbly’s. I’ve found matching .stl. See comparison below)
Franck’s Prusa XL dwarf-cover-base .stl EDIT: Correct stl: Tool numbers on Dwarf Cover Base by RobAs | Download free STL model | Printables.com

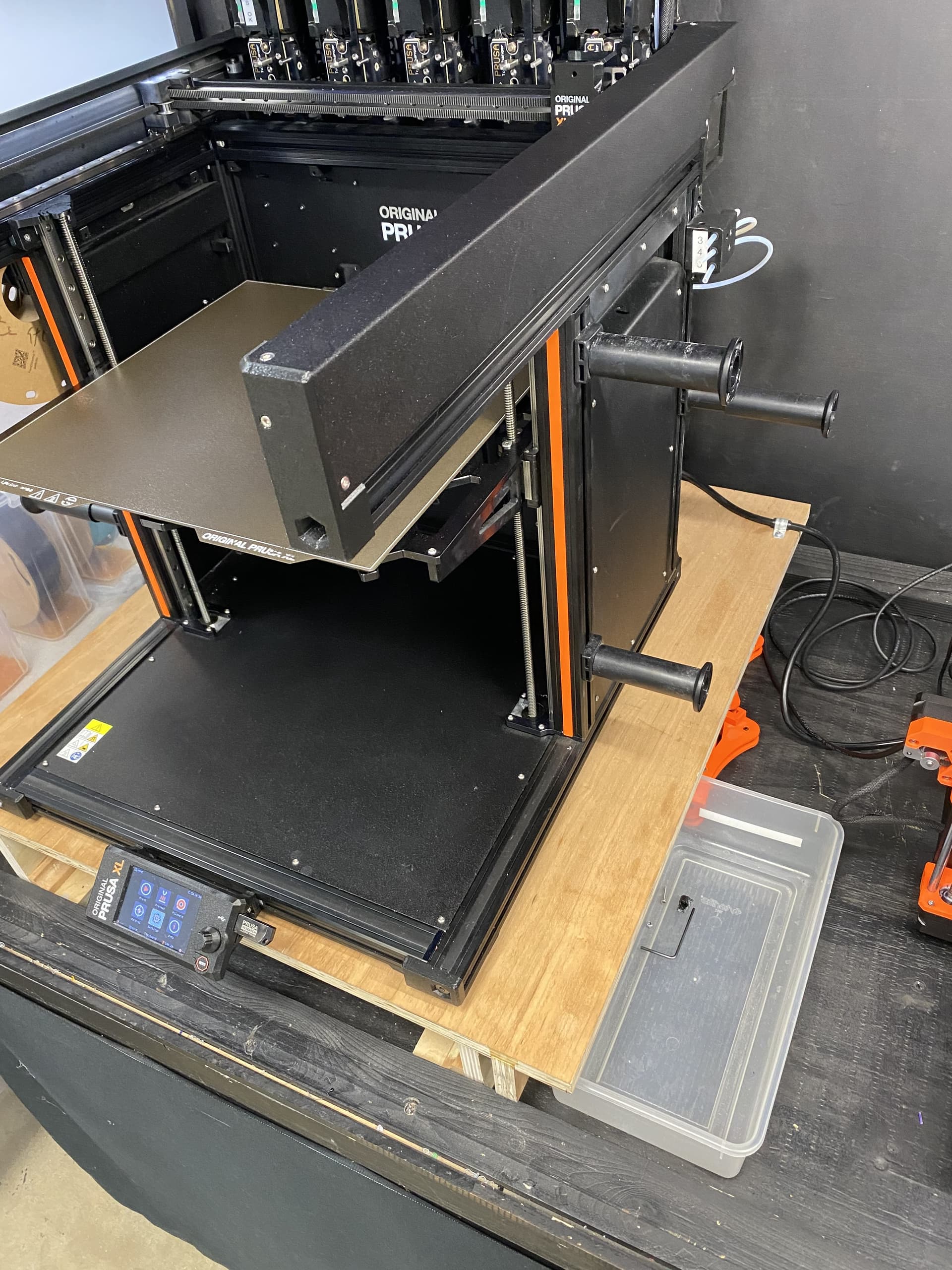

And here is current state of XL’s Toolhead #5:

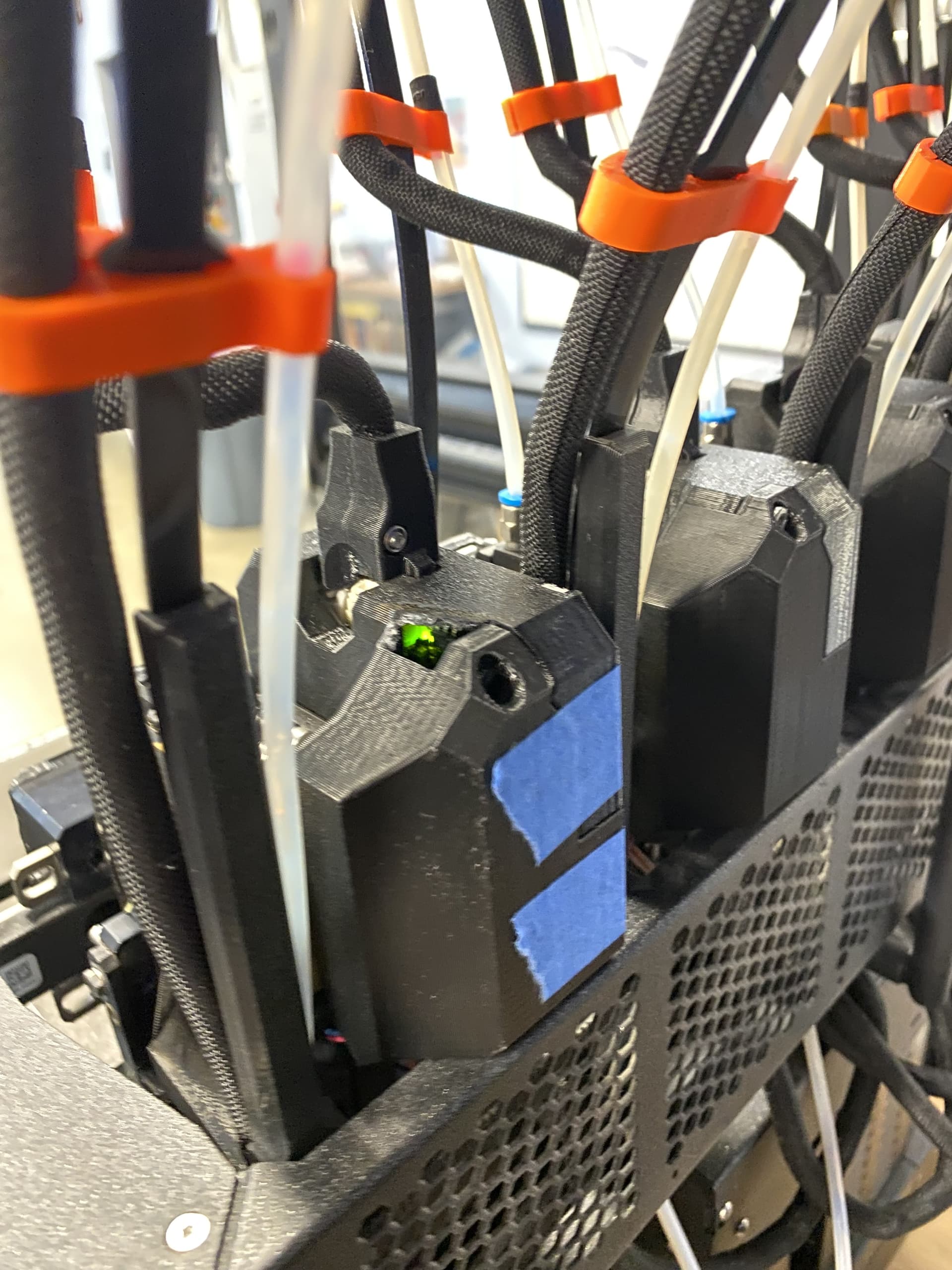

Painters taped the dwarf-cover-door for temp placement
Set nut + bolt for hinge inside plastic container next to the XL

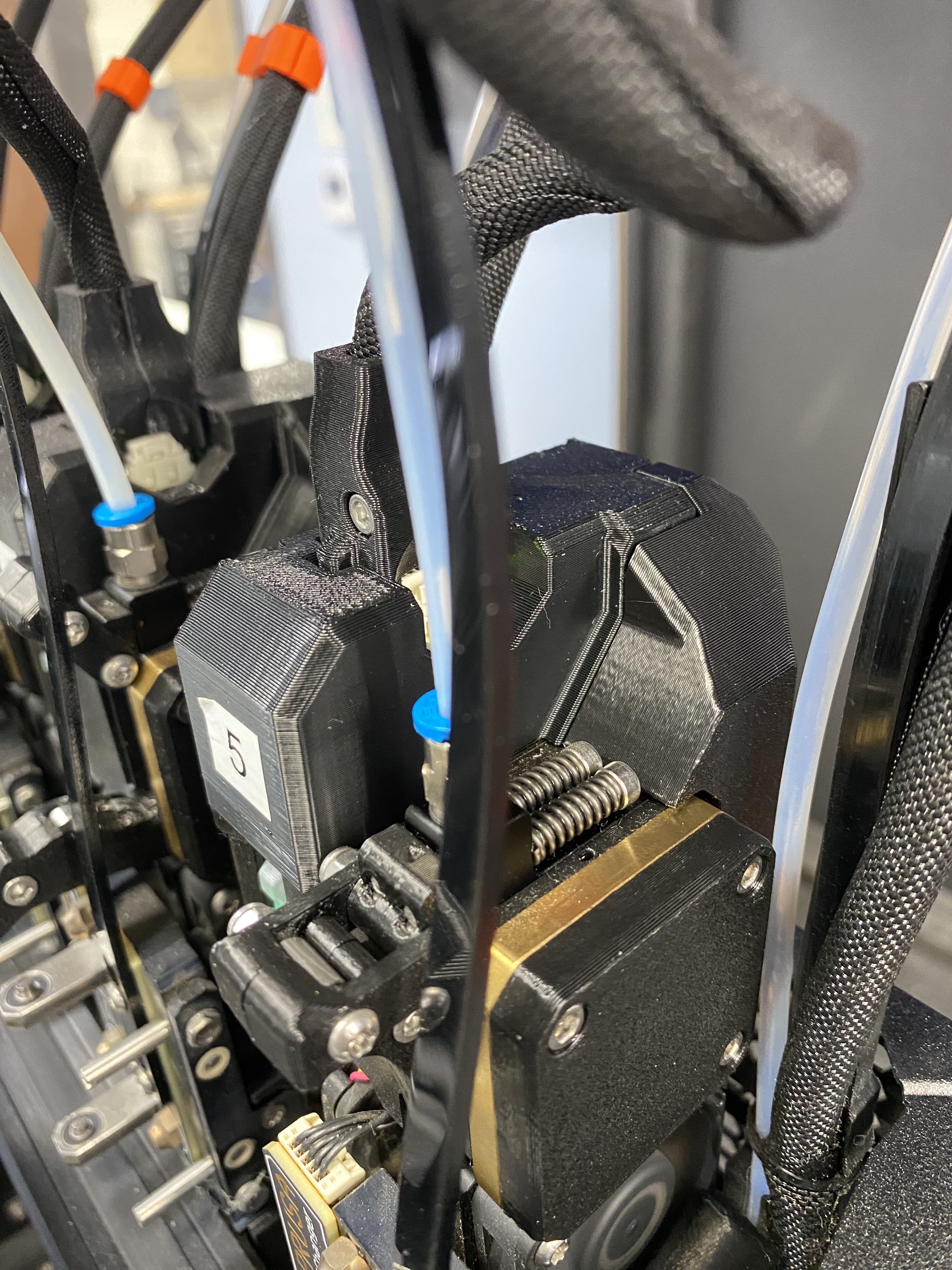

And Yellow Tagged TH #5

blakeko · May 29, 2025, 11:57pm

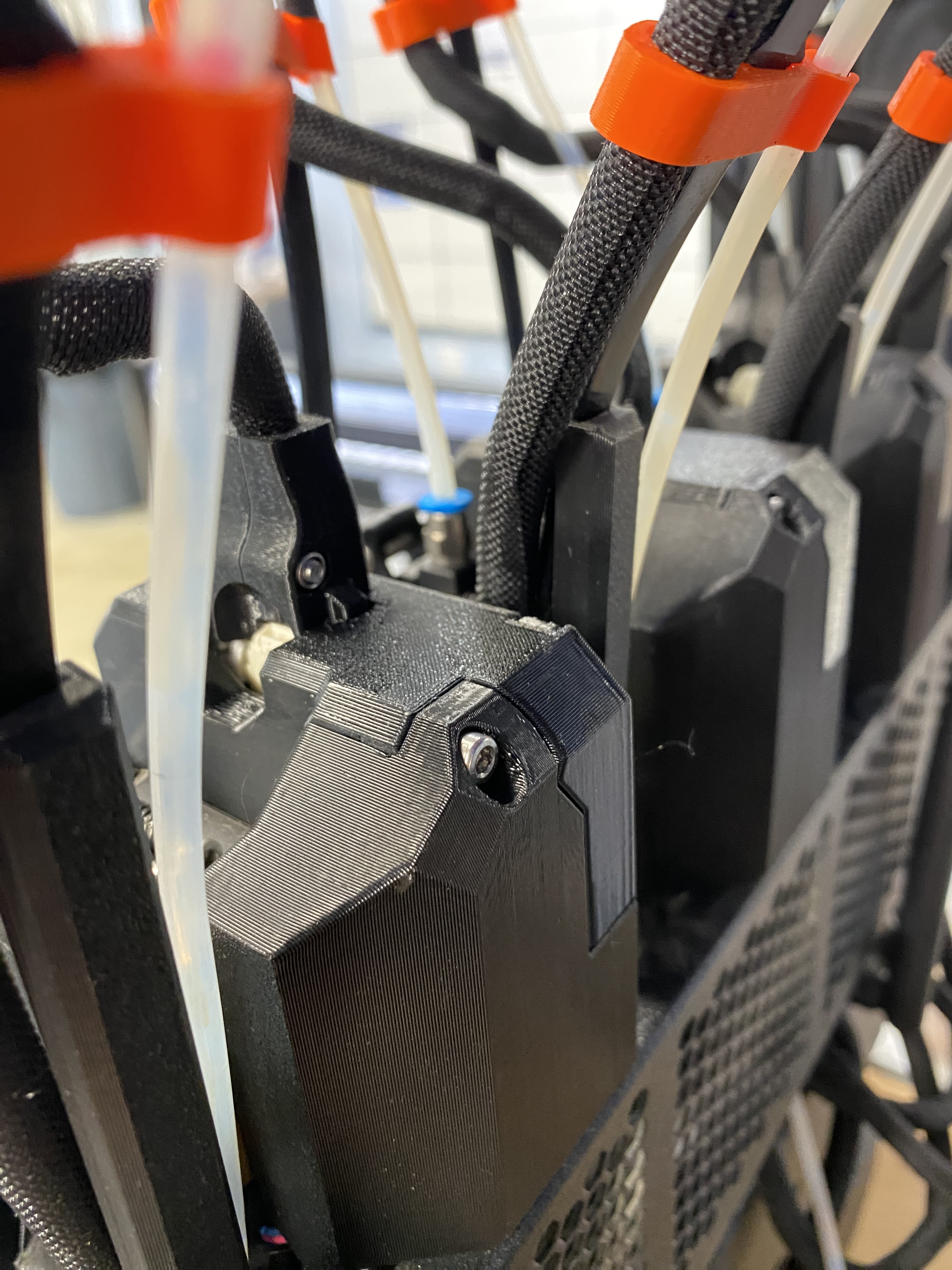

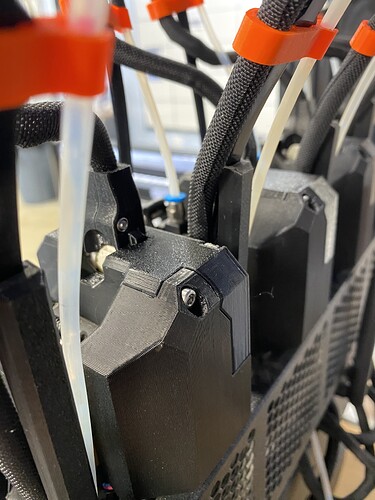

Blocked out some time yesterday to print a replacement Dwarf Cover Base and replaced the broken piece. Toolhead #5 is all fixed!

Thank you, @NickE for the approval to wrench on the XL and helping out!

Rolo · May 30, 2025, 11:58pm

Thank you for taking care of it!
