Issue type: Equipment Problem
Area: 3D Printing
Equipment: Prusa XL
Summary: Extruder 2 is misaligned
Additional Info: It seems to be mis-calibrated in Y
Report generated from a filing. This report has also been sent to Asmbly staff, leadership, and space leads with any contact info that was provided. Provide additional photos or resources here to help. When the problem is resolved, ensure it is marked.

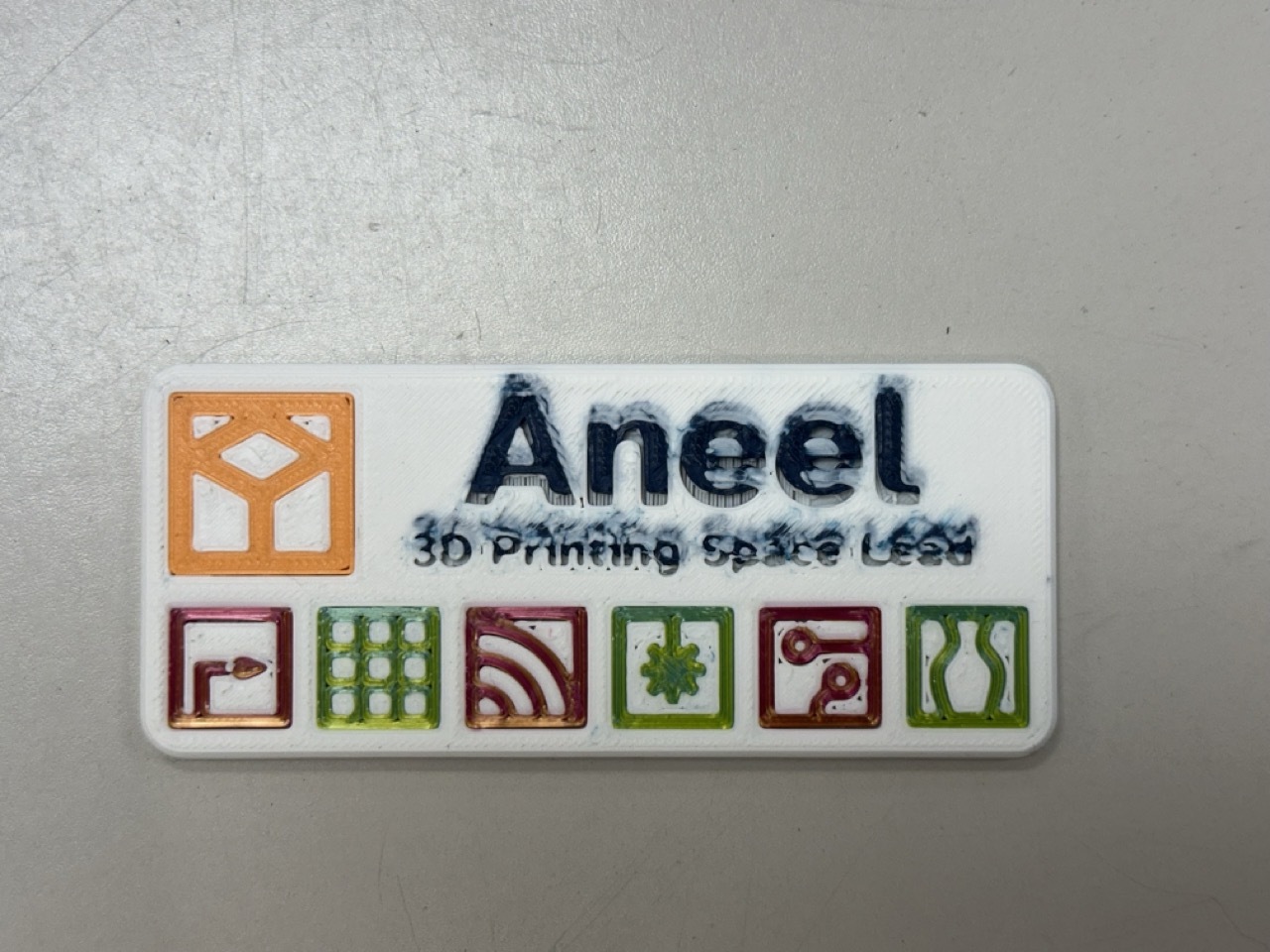

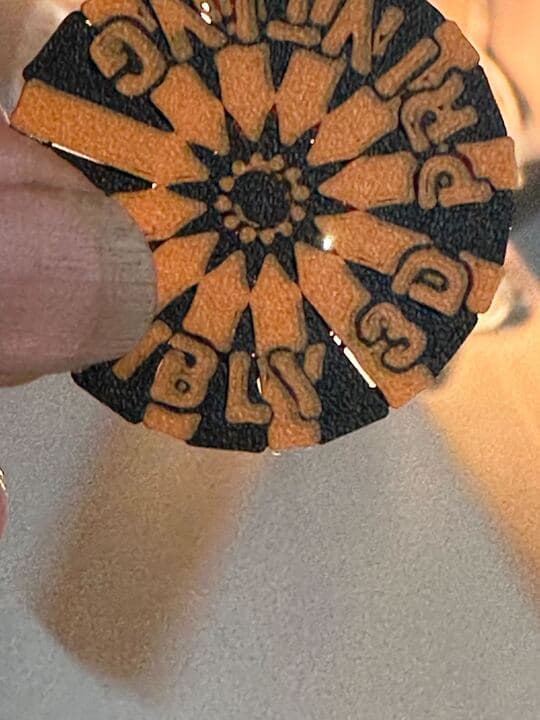

I spent several hours last night attempting to adjust this, both using the automatic calibration routine and manual adjustments. Extruder 2 is now much closer to alignment with the other extruders, but it’s definitely not perfect. You can still see light through gaps in a two color print. I think there’s still a misalignment of ~0.4 mm.

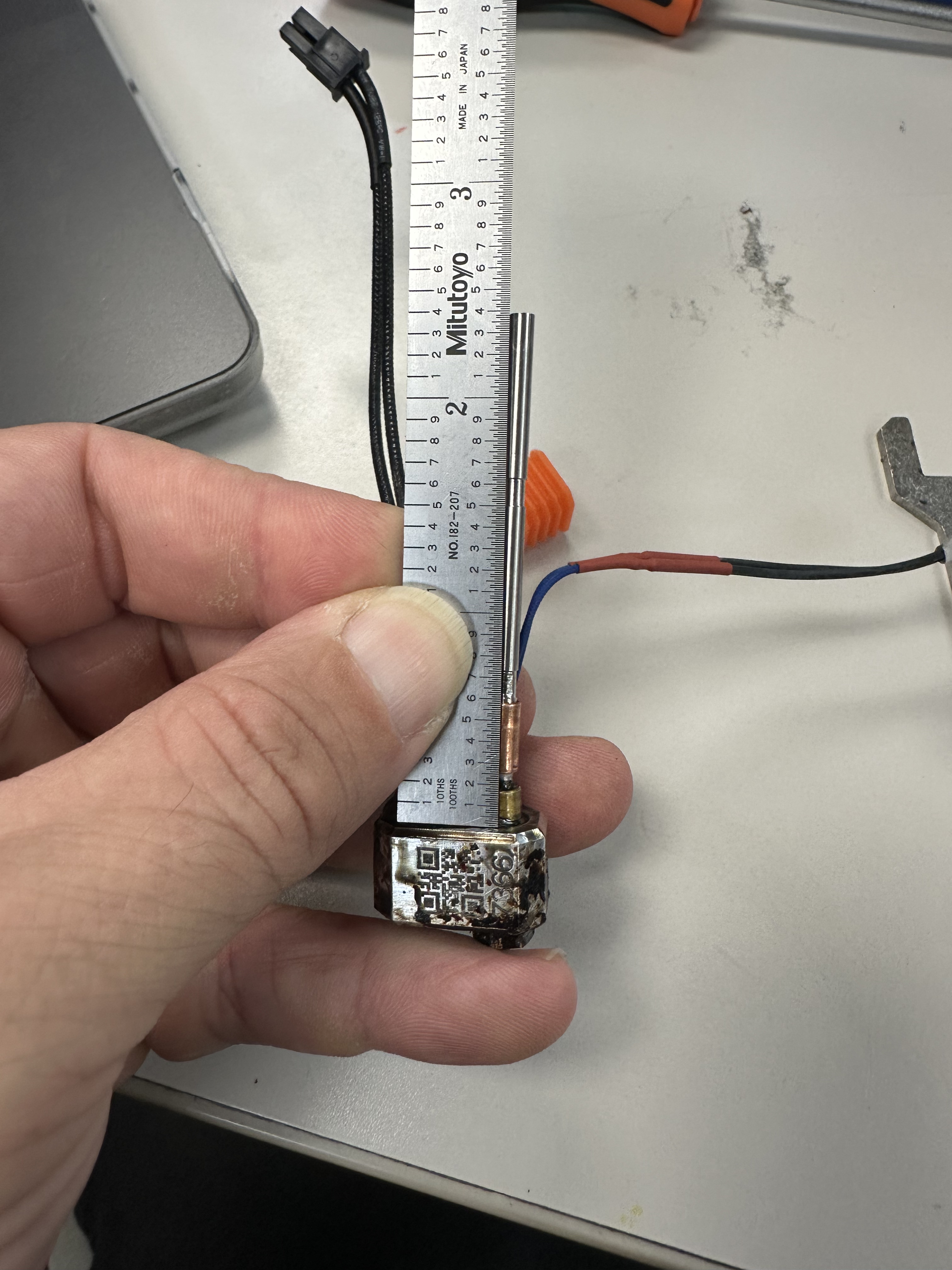

I think the next step is probably swapping out the nozzle on extruder 2 and trying the automated calibration routine before we do any printing with it so that it is completely clean.
If that fails, another few rounds of manual adjustments are probably necessary.
Someone has started working on this.
Someone has finished work on this and called it done.
Thank you for reporting it and helping us keep track of what needs attention.
